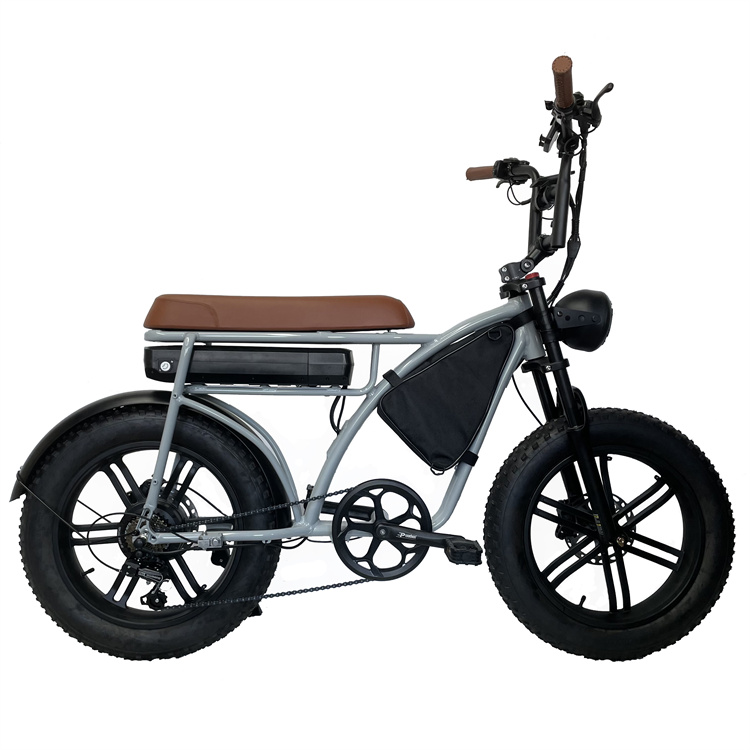

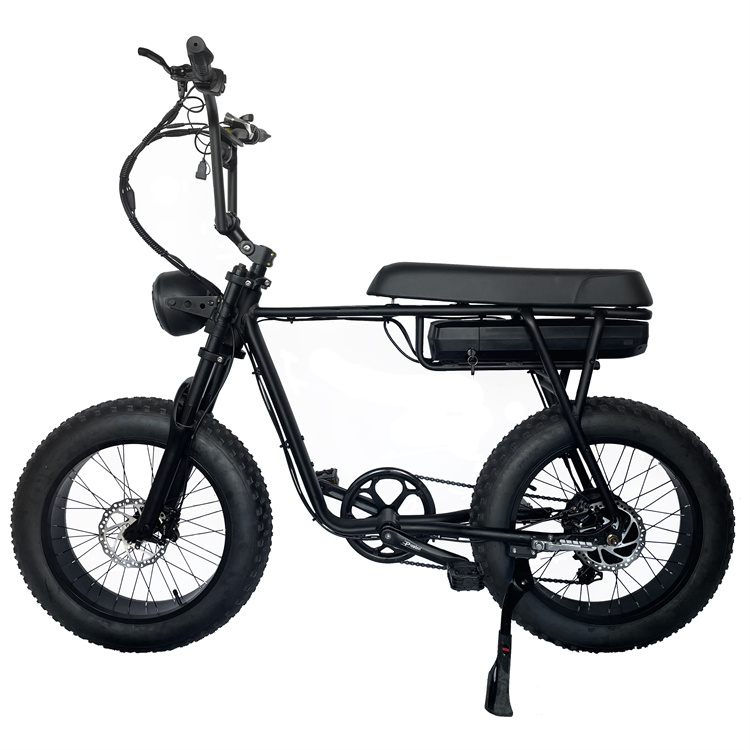

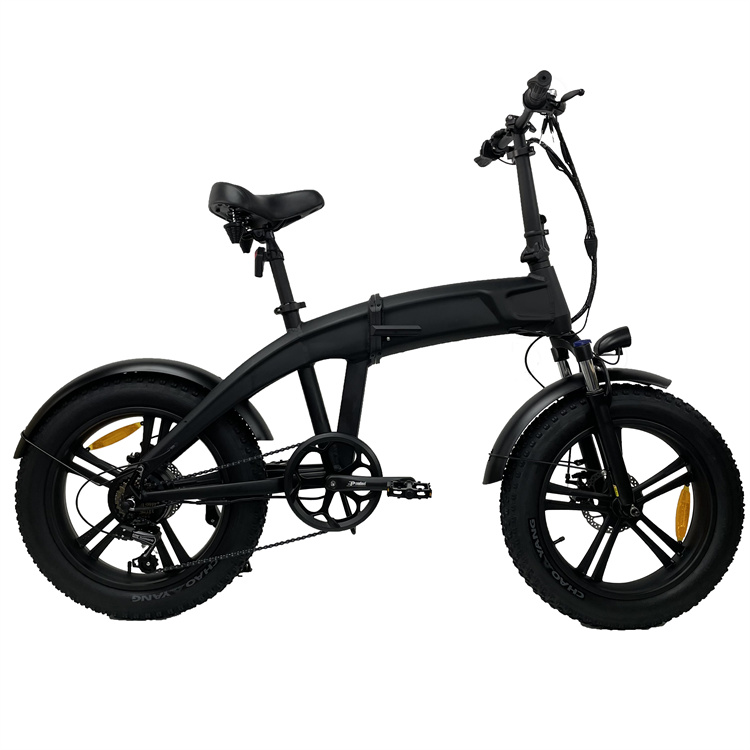

20 Inch 48v 20.3ah 7 Speed Snow Mountain Hydraulic Brake Bicycle Middle Color Lcd Display Ebike 750w Fat Tire Electric Bike

20 Inch 48v 20.3ah 7 Speed Snow Mountain Hydraulic Brake Bicycle Middle Color Lcd Display Ebike 750w Fat Tire Electric Bike

We can provide you the high-resolution pictures, videos, detailed specs for your website.

You only need to focus on the sales, we will take care of everything else.

Please contact us by WhatsApp at +8613423872432 for cooperation.












				ELECTRIC SYSTEM









				Motor




				48V/750W brushless toothless









				250W/350W/500W/1000W optional









				Battery




				48V 20.3Ah Li-ion battery with Rear light (17.5/18.2/21/22.4Ah optional)









				with electric protection circuit, removable, waterproof









				Charger




				AC100~240V, 50-60Hz, smart fast charger









				54.6V-2A









				Charge Time




				7-8 hours

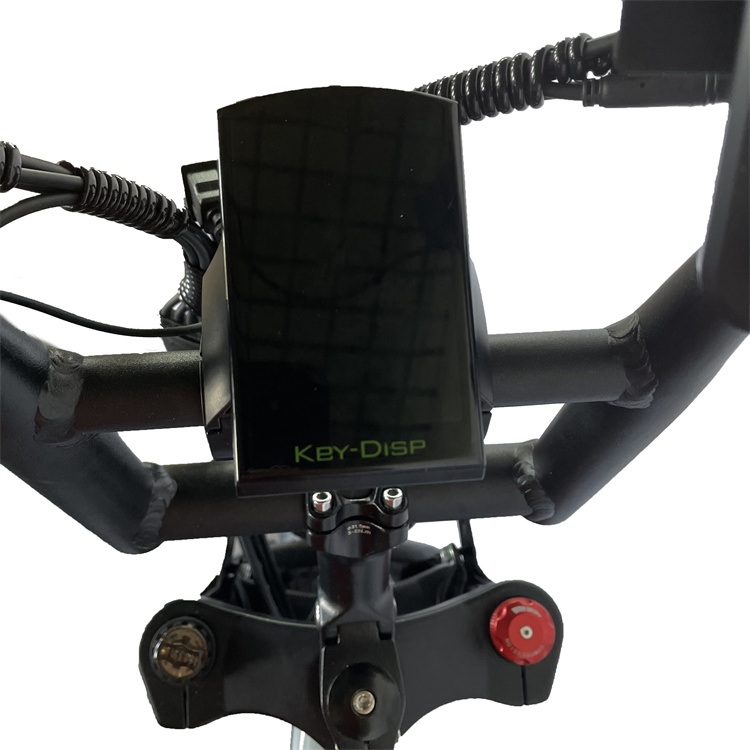

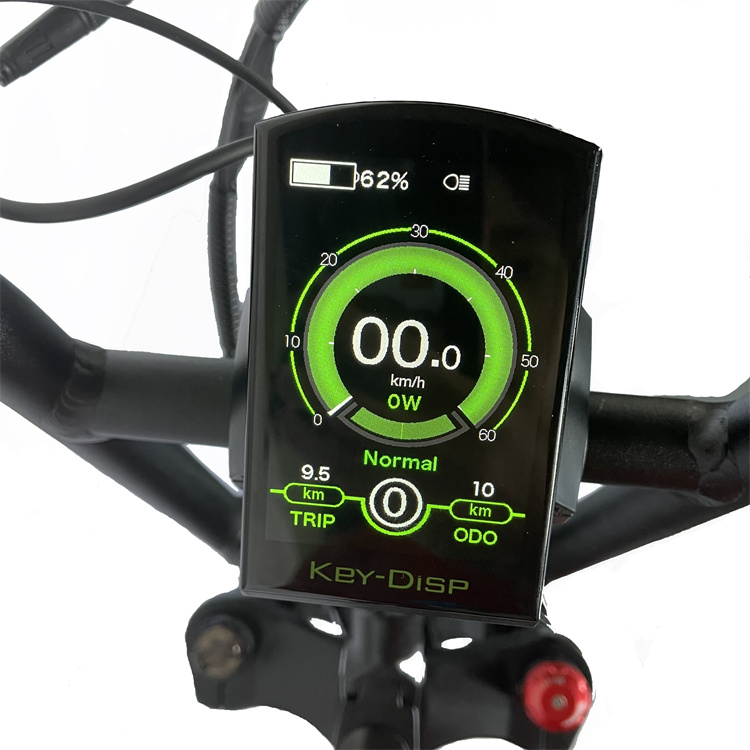

				Display

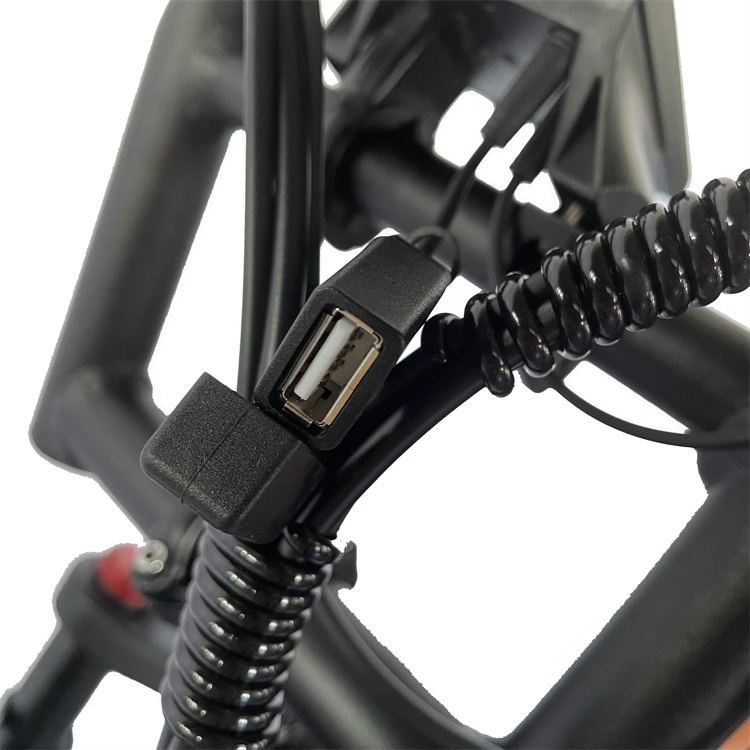

				5-lever middle display with phone charge port Key-Disp brand









				Horn




				Available









				Operation




				Pedal assisted system









				PAS




				Pedal assisted system









				Controller




				1:1 intelligent pedal assistant system









				Low noise & durable

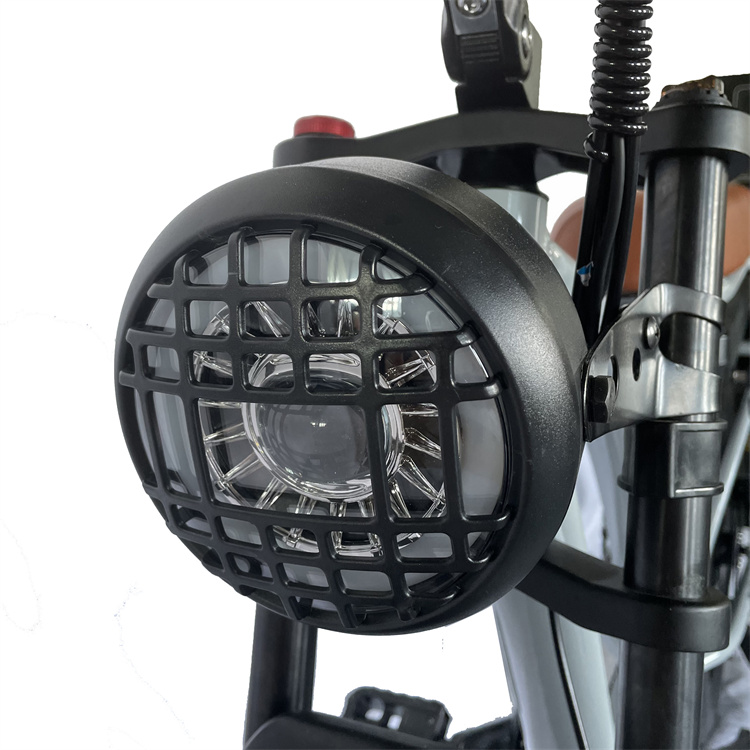

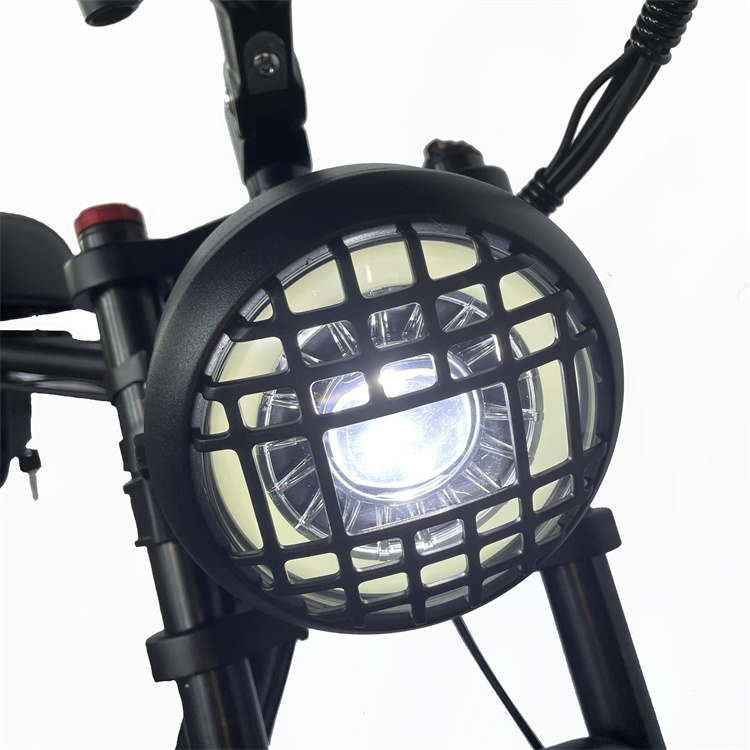

				Light (F & R)




				LED

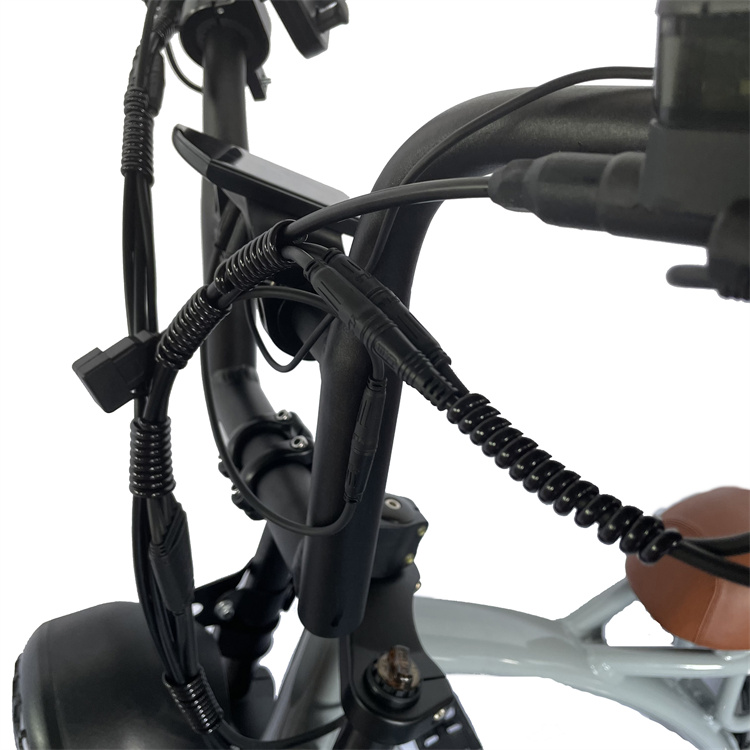

				Integrated Cable




				Available, convenient to replace parts


















				MAIN COMPONENT









				Frame




				Alloy aluminum









				Fork




				Hydraulic aluminum shoulder and leg lockout suspension(double shoulder)

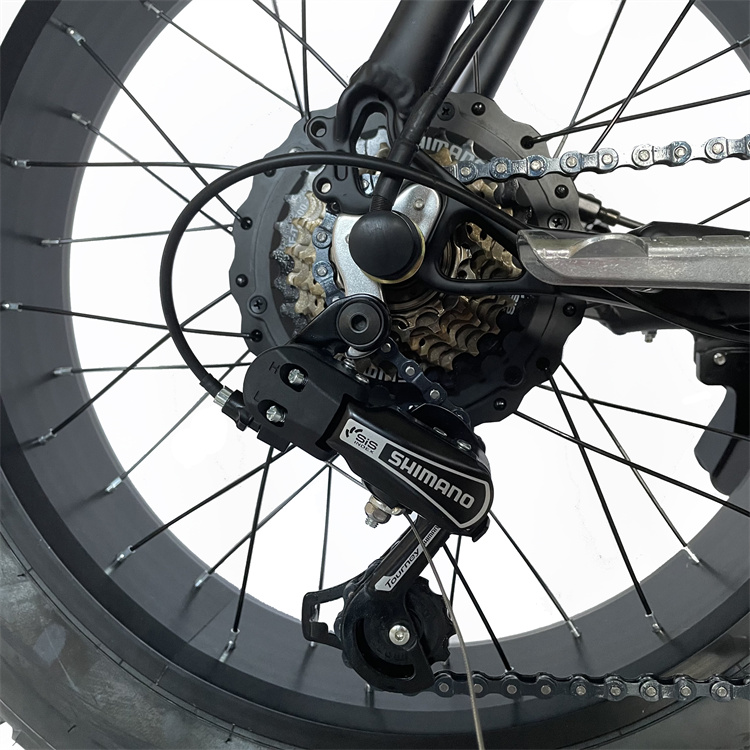

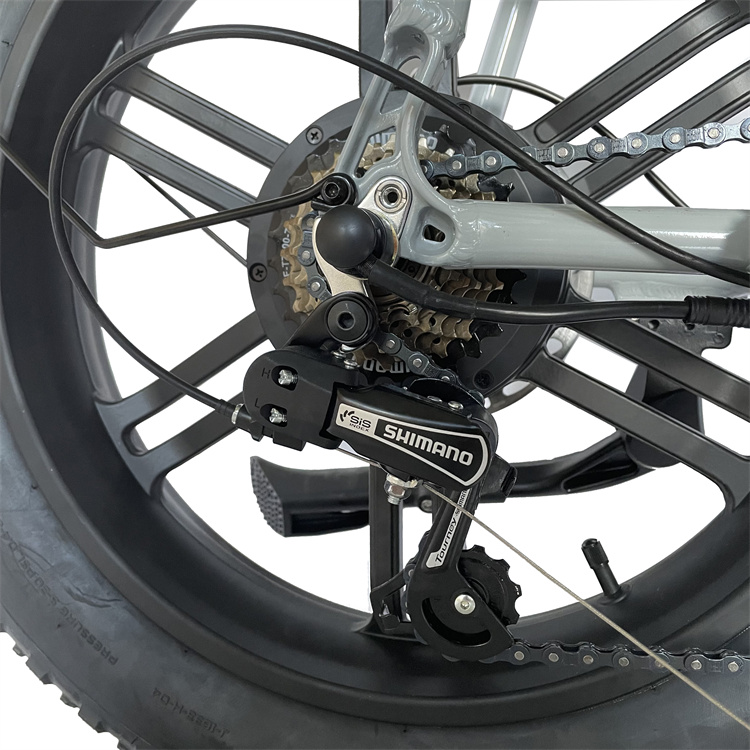

				Derailleur




				Shimano 7 speed









				Cassette




				Shimano 7speed

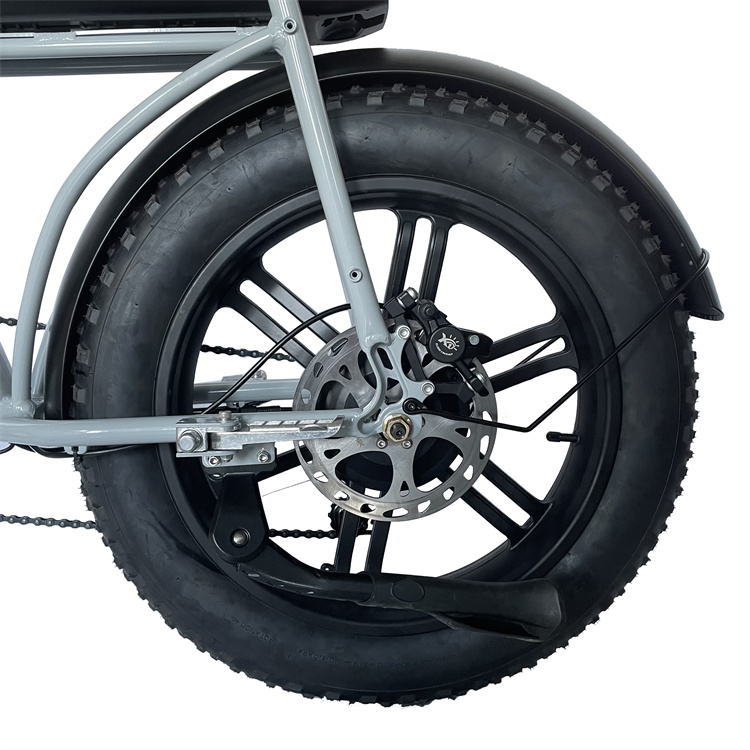

				Brake(F/R)




				Hydraulic brake

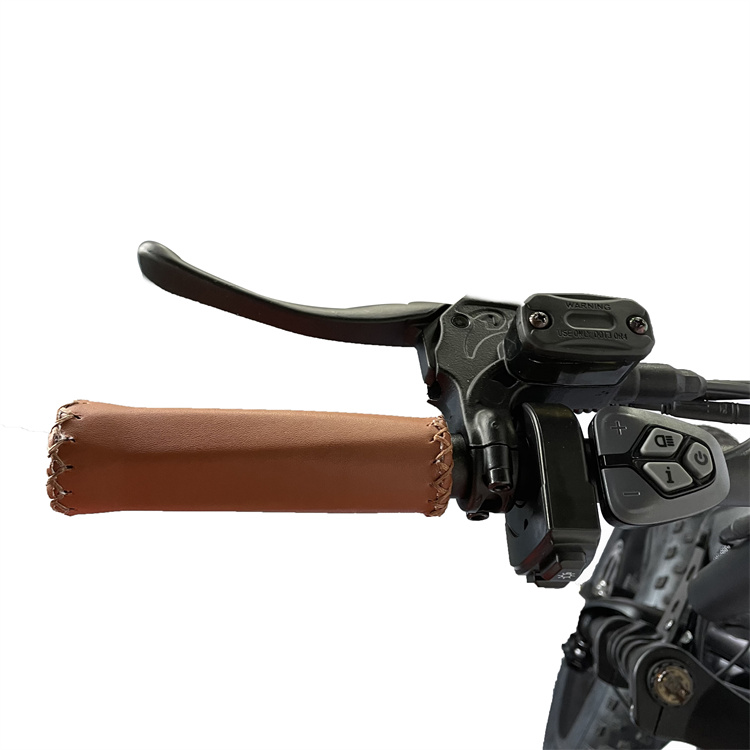

				Brake Lever




				Alloy, power cut when braking









				Tire




				20"*4.0 pneumatic snow tire black Chaoyang









				Wheel




				Alloy or spoke wheel both available









				Grip







					EB19: L: comfort grip with ergonomic shape R: Twist Throttle




					EB20: comfort ergonomic microfiber leather grip with thumb shifter

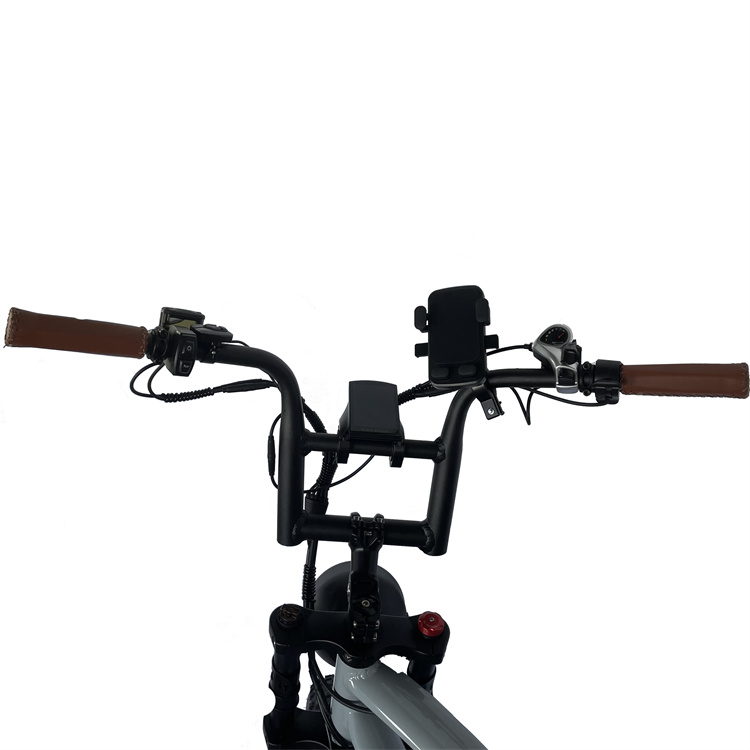

				Handle Bar




				Alloy aluminum XieJin

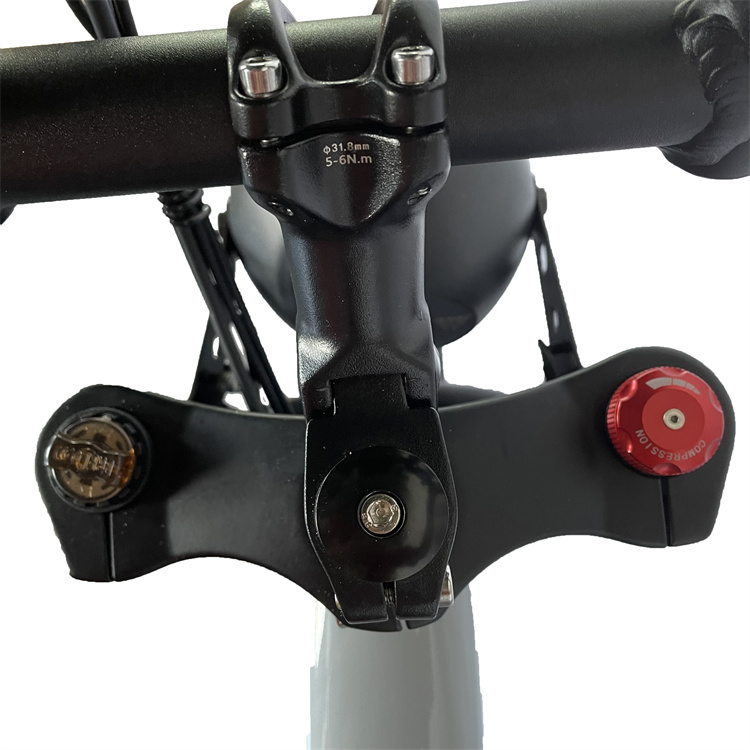

				Stem




				Adjustable XieJin









				Saddle




				Soft comfortable long seat that can sit 2 people









				Foot Stand




				Available

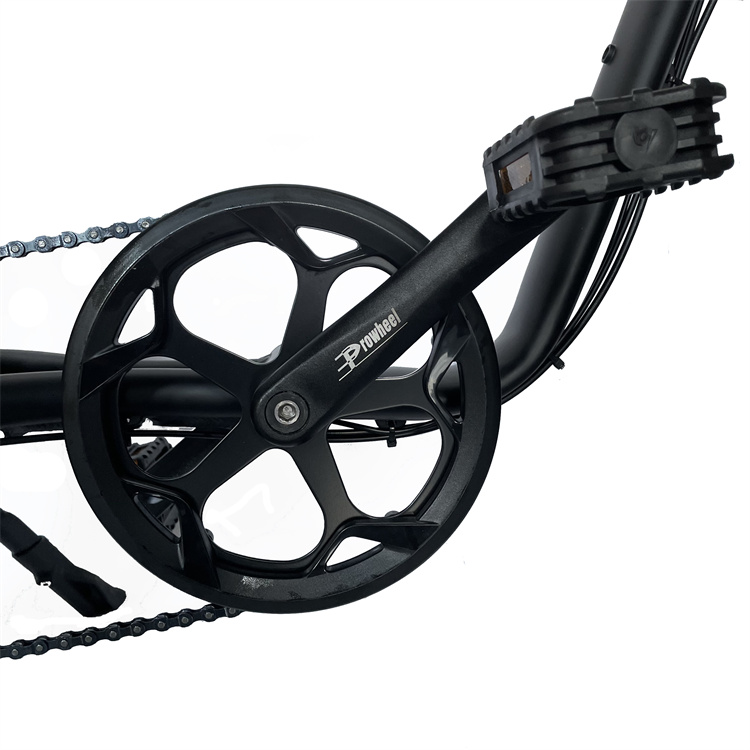

				Chainwheel




				52T, with alloy crank, Prowheel









				Chain




				Rust-resistant chain KMC









				Pedal




				Aluminum non-foldable









				Kickstand




				Alloy aluminum









				Fender (F & R)




				Painted steel









				Bag




				Optional

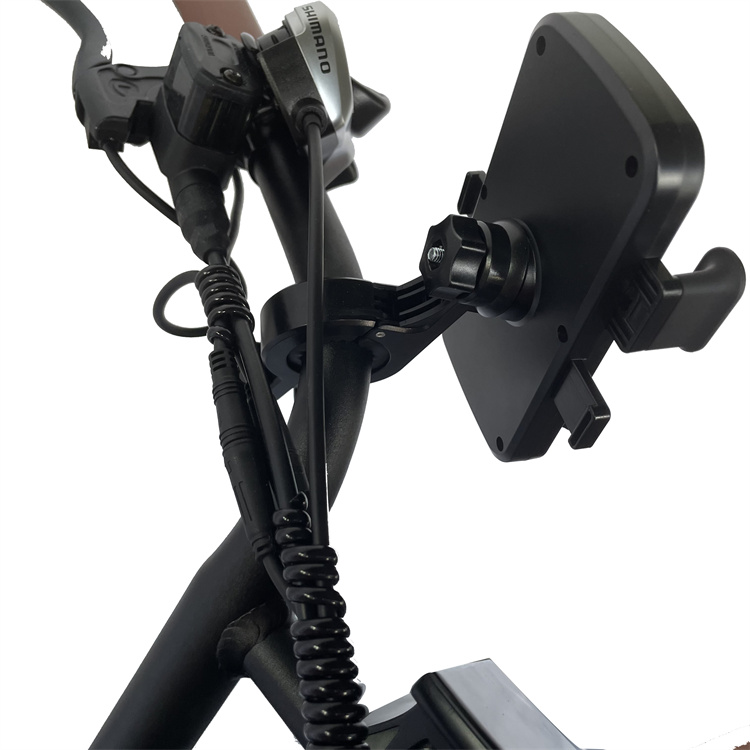

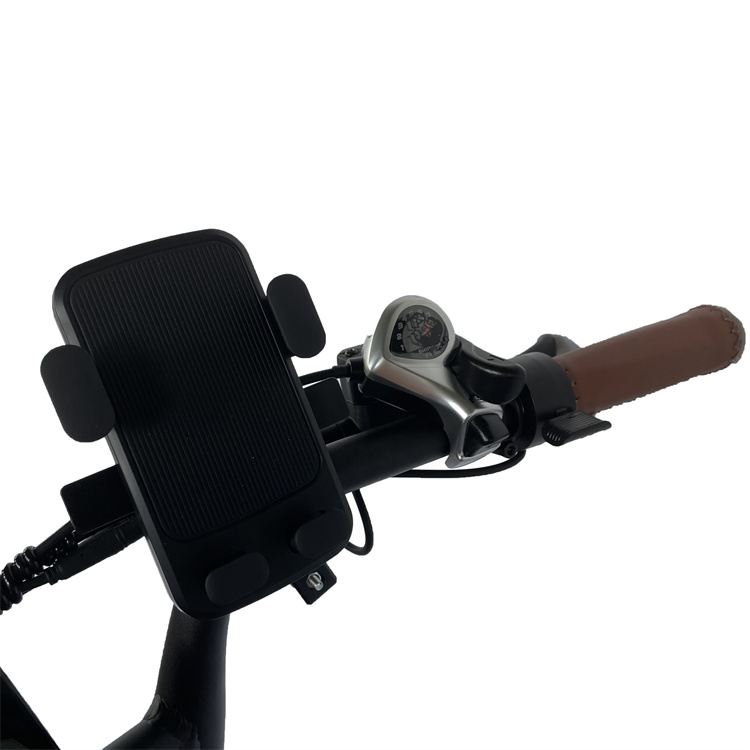

				Phone Holder




				Available









				Color




				Black, gray or red other required colors (liquid painting )


















				PERFORMANCE









				Climbing ability




				15°









				Max Speed




				25-45km/h based on customers' requirement









				Range




				80-85km/h by PAS, 55-65km by only electric









				Max Load




				120Kg


















				PACKING & DELIVERY









				N.W/G.W/set




				EB19:36kg/41kg, EB20:31.5kg /36.5kg









				Unfolding Size/set




				EB19:1600*730*1250(mm)  EB20:1670*740*1250(mm)









				Carton Size/set




				EB19:1320*330*790(mm)  EB20:1340*330*820(mm)









				Container Qty




				70sets/20GP, 140sets/40GP, 170sets/40HQ









				Delivery Time




				Sample: 7-15 days, mass production: 45-60 days
